Build Your Street Signage System

Direct burial poles and accessories are made of extruded and cast aluminum. Direct burial poles require a minimum of 18” to 24” burial below grade in concrete for proper installation.

Sign Pole Options

Most traffic sign poles are available in lengths up to 16'.



3" O/D Smooth
3" O/D Fluted



4" O/D Smooth



4" O/D Fluted



4" x 4" Smooth Square



4" x 4" Fluted Square



BREAKAWAY POLES

3" O/D Smooth Breakaway*


4" O/D Smooth Breakaway*

Pole Topper Options

POLE TOPPERS FOR 3” O/D ROUND POLES

TSB2

3 1/2” W x 6” H

TSB4

3 1/2” W x 6” H

TSB5

3 1/2” W x 6” H

TSB7

3 1/2” W x 6” H

TSB10

3 1/2” W x 6” H

TSB17

3 1/2” W x 6” H

POLE TOPPERS FOR 4” O/D ROUND POLES

TSB20

3 1/2” W x 6” H

TSB60

3 1/2” W x 6” H

TSB64

3 1/2” W x 6” H

TSB65

3 1/2” W x 6” H

TSB68

3 1/2” W x 6” H

POLE TOPPERS FOR 4” x 4” SQUARE POLES

TSB11

3 1/2” W x 6” H

TSB12

3 1/2” W x 6” H

Base Options

BASES FOR 3” O/D ROUND POLES

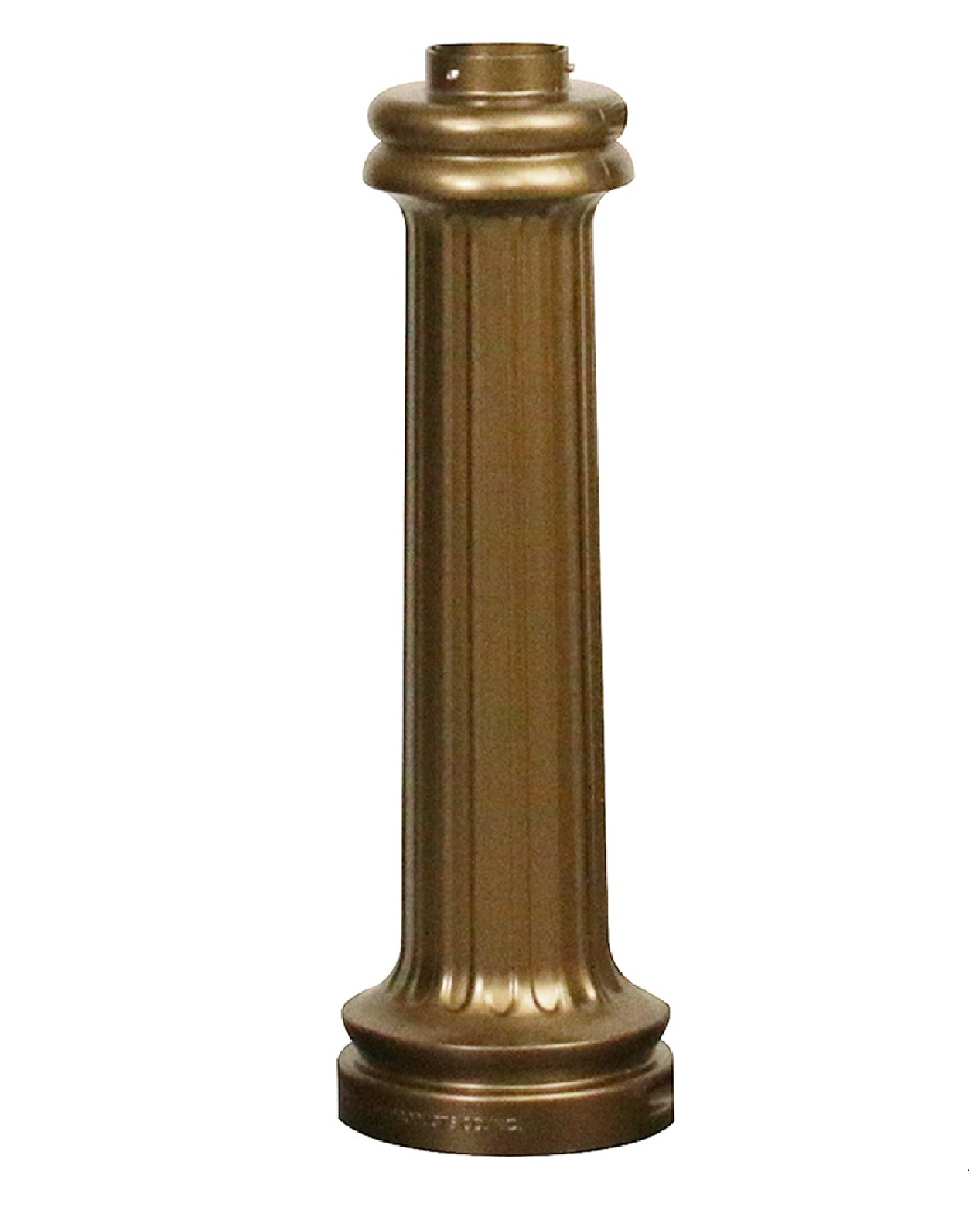

WRB1

26” Height 8” Dia.

WRB2

26” Height 6 3/4” Dia.

WRB5

24” Height 8” Dia.

WRB6

32” Height 11 3/4” Dia

WRB8

10 1/4” Height 9 1/4” Dia.

WRB17

16 1/4” Height 7 3/4” Dia.

WRB7

4 3/16" Height 7" Dia

4” O/D ROUND POLES

WRB9

32” Height 11 3/4” Dia

WRB11

16” Height 13” Dia.

WRB16

13 1/2” Height 7 3/4” Dia.

4” x 4” SQUARE POLES

WRB3

14” Height x 7" Length x 7" Width

Street Sign Mount, Banner Arm or Custom Sign Mount Options

TSCR/TSCR 600



TSCR-700

TSCR-DBL/TSCR-600-DBL

TSB-201/TSB-601

TSB-201-DBL

TSB-202

TSB-203/TSB-203-99

TSB-205/TSB-605

TSB-205-DBL/TSB-605-DBL

TSB-206/TSB-606

TSB-207/TSB-607

TSB-208/TSB-608

TSB-209/TSB-609

TSB-210/TSB-610

TSB-214/TSB-614

TSB-215

TSB-216

Custom Example 1

Custom Example 2

Custom Example 3

Custom Example 4

Custom Example 5

Custom Example 6

Custom Example 7

Pole Top Mount, Finial and Sign Mounting Bracket Options

TRO

Fits 3” O/D round poles. Holds one .080 flat or extruded sign blade.

DBL

Fits on top of .080 flat or extruded street name sign. Holds one sign blade.

TSB3

Finial for flat or extruded street name signs.
Dimensions:
1 7/8” W x 2 3/4” H

TSB8

Finial for flat or extruded street name signs.
Dimensions:
1 7/8” W x 2 3/4” H

TSB15

4” to 3” pole adapter. Easily attach mounting brackets or a light fitter to a 4” O/D pole.

TSB1/TSB61

TSB1 (Fits 3” O/D Pole)

TSB61 (Fits 4” O/D Pole)

Pole sign bracket / hardware (set of 2)

TSB9/TSB62

TSB9 (Fits 3” O/D Pole)
TSB62 (Fits 4” O/D Pole)

Pole sign bracket / hardware for
back to back signage mount
(set of 2)

TSB14/TSB63

TSB14 (Fits 3” O/D Pole)
TSB63 (Fits 4” O/D Pole)

Pole sign bracket / hardware
(set of 2)

TSB13

Vandal proof nuts
(pack of 10)

Traffic Sign Back Plate, Sign Trim and Sign Frame Options

SIGN BACK PLATES

BP24-OCT 24” Back Plate
BP30-OCT 30” Back Plate
BP36-OCT 36” Back Plate

BP-2424 24” x 24” Back Plate
BP-3030 30” x 30” Back Plate
BP-3636 36” x 36” Back Plate

BP-1218 12” x 18” Back Plate
BP-1824 18” x 24” Back Plate
BP-2430 24” x 30” Back Plate

BP30-TRI 30” Back Plate
BP36-TRI 36” Back Plate
measurement is point to point

Back Plate
Detail

SIGN TRIMS

ST24-OCT 24” Sign Trim
ST30-OCT 30” Sign Trim
ST36-OCT 36” Sign Trim

ST-2424 24” x 24” Sign Trim
ST-3030 30” x 30” Sign Trim
ST-3636 36” x 36” Sign Trim

ST-1218 12” x 18” Sign Trim
ST-1824 18” x 24” Sign Trim
ST-2430 24” x 30” Sign Trim

ST30-TRI 30” Sign Trim
ST36-TRI 36” Sign Trim
measurement is point to point

Sign Trim Detail

SIGN FRAMES

SF24-OCT 24” Sign Frame
SF30-OCT 30” Sign Frame
SF36-OCT 36” Sign Frame

SF-2424 24” x 24” Sign Frame
SF-3030 30” x 30” Sign Frame
SF-3636 36” x 36” Sign Frame

SF-1218 12” x 18” Sign Frame
SF-1824 18” x 24” Sign Frame
SF-2430 24” x 30” Sign Frame

SF30-TRI 30” Sign Frame
SF36-TRI 36” Sign Frame
measurement is point to point

Sign Frame Detail

Back Plate, Sign Trim or
Sign Frame mounting diagram
(using TSB1 brackets)

CUSTOM BACK PLATES AND SIGN FRAMES

Street Name Sign Blade Options

STANDARD FLAT SIGN BLADE

6” High Blade
by necessary length

9” High Blade
by necessary length

STANDARD EXTRUDED SIGN BLADE

6” High Blade
by necessary length

9” High Blade
by necessary length

CUSTOM STREET NAME SIGN BLADE

Custom Example 1
As Shown: 36” W x 6” H

Custom Example 2
As Shown: 30” W x 10 3/8” H

Custom Example 3
As Shown: 30” W x 10” H

Custom Example 4
As Shown: 30” W x 9 3/4” H

Custom Example 5
As Shown: 30” W x 15” H

Custom Example 6
As Shown:30” W x 16” H

MUTCD Approved Signage Options
  • Not limited to examples shown here, all standard MUTCD and custom signage options available
  • Signage is available in Engineer Grade Prismatic, High Intensity Prismatic and Diamond Grade Prismatic Reflective Sheeting

Street name and regulatory signs must conform to the Manual on Uniform Traffic Control
Devices (MUTCD). Always check with your local ordinance or municipality to ensure size
and reflectivity requirements are met or exceeded when purchasing traffic control signage.

Finish Options

Textured Black

Copper

Swedish Silver

Verde Green

Evergreen

Smooth Glossy Black

White

NEED PRICING?

Let us prepare customized pricing for your signage system

Request Quote (855) 537-0200 (855) 537-0200
